Raw Power, Effortless Dominance
Displacement
Max Speed
Fuel tank capacity

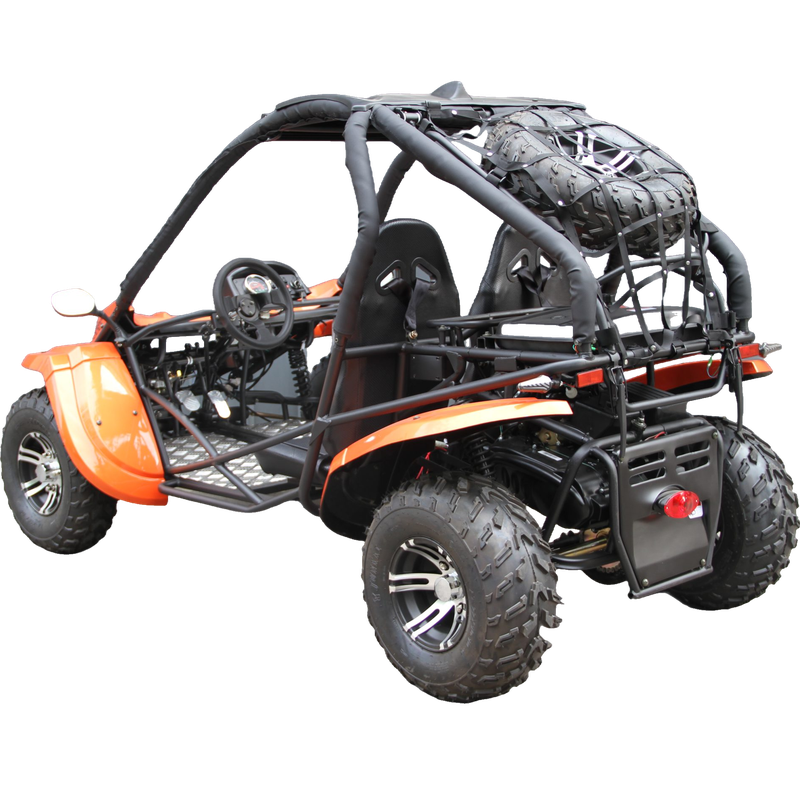

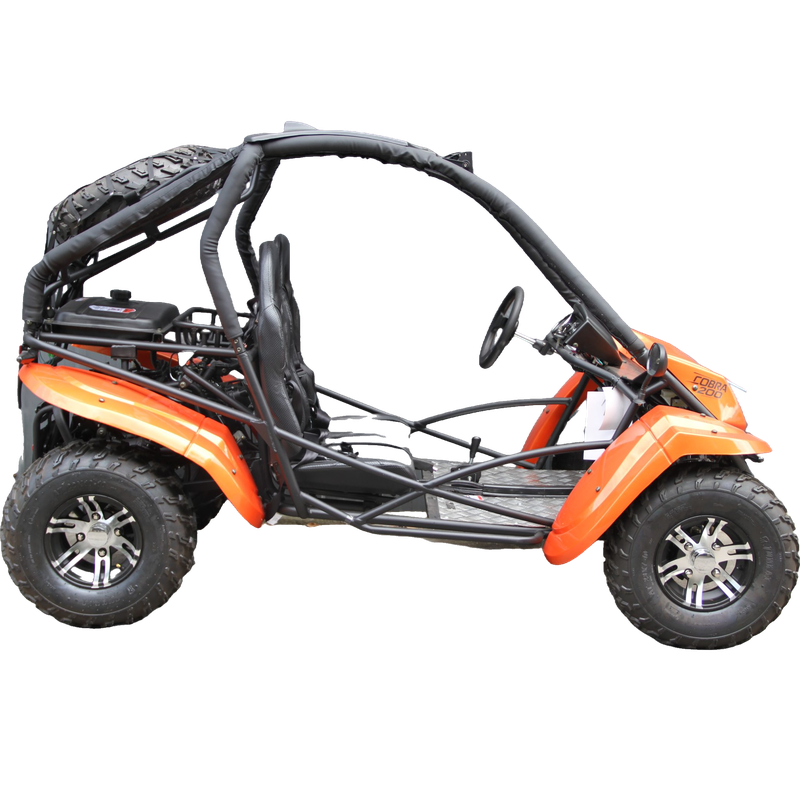

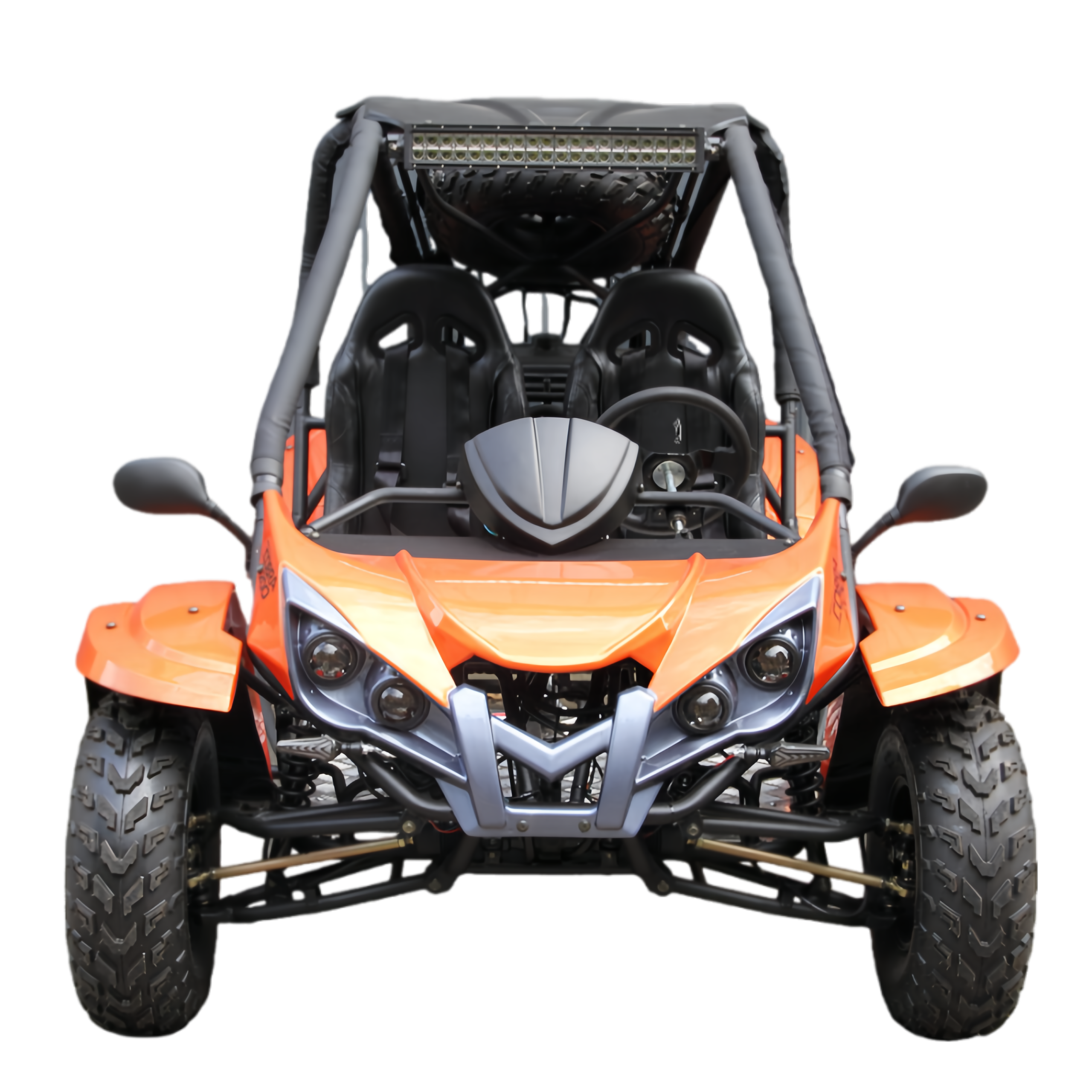

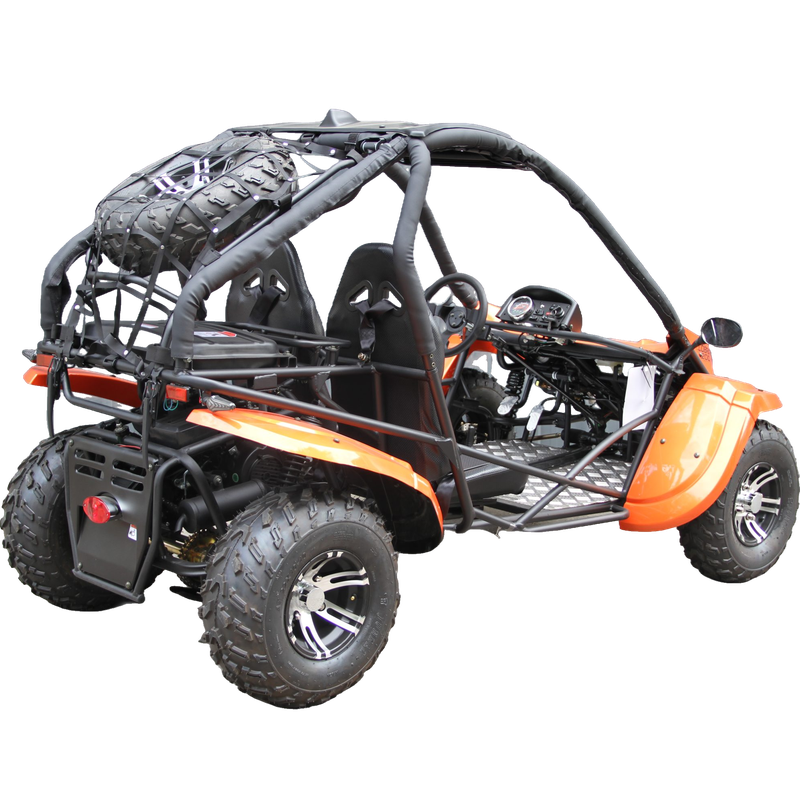

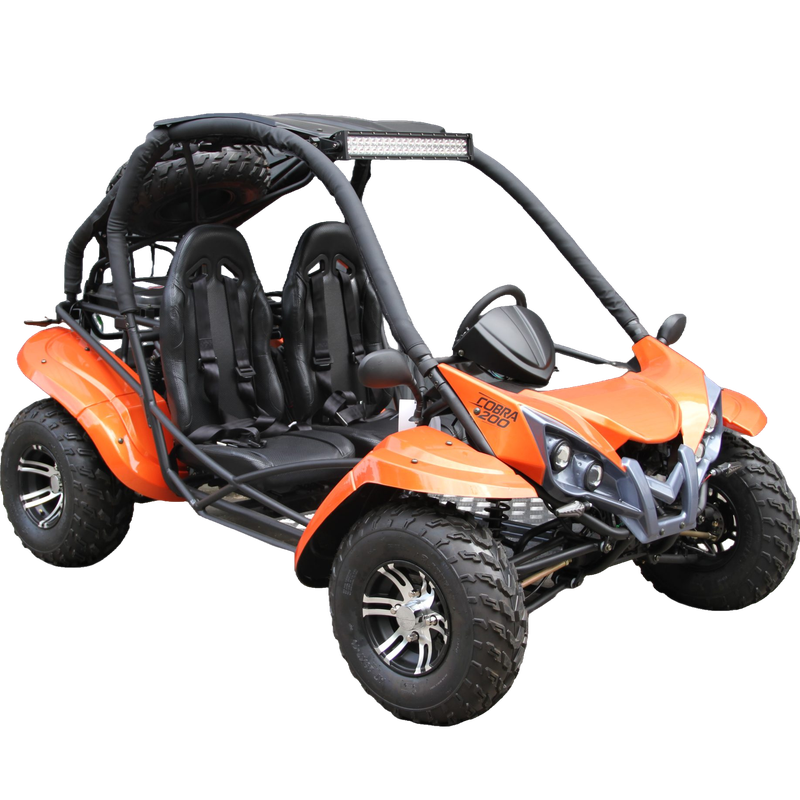

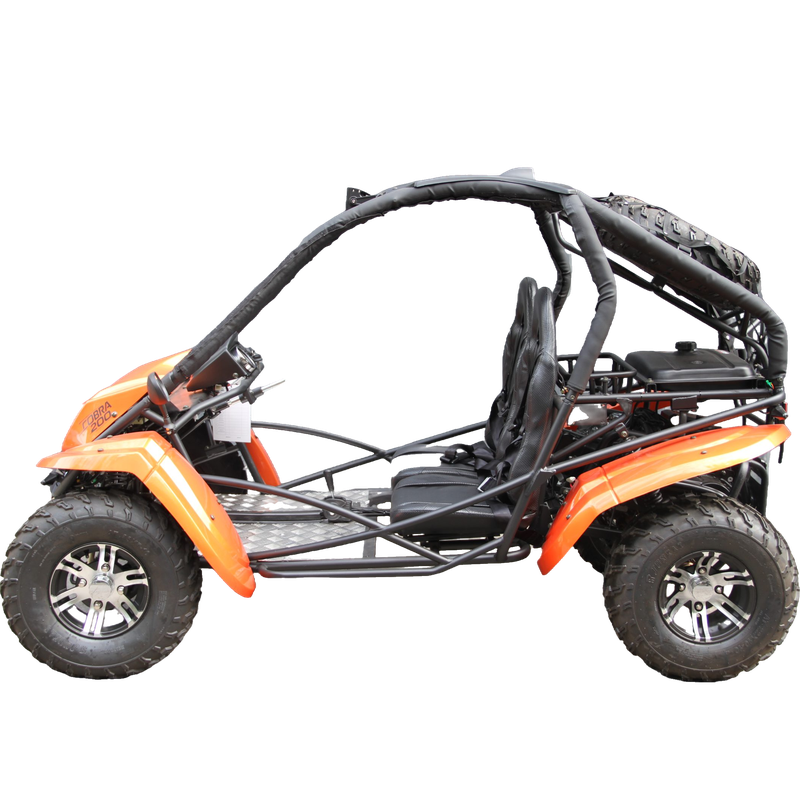

| Model name: | CM200GKL-5 | ||
| Engine: | 200CC | Engine type: | JN1P63YMK（Single Cylinder, Horizontal, Four Stroke, Forced Air Cooling |
| Displacement: | 177.3ml | Battery: | 12V9A |
| Power: | 2WD | Transmission: | 1+1 |
| Payload capacity: | 185kg | Starting system: | Electric start |
| Maximum speed: | 60 | Front brake: | Disc brake |
| Maximum torque(Nm): | 11.5/5500 | Rear brake: | Disc brake |
| Cylinder number: | 1 | Transmission system: | Chain drive |
| Wheelbase: | 2000 | Fuel tank capacity: | 15L |
| Minimum grand clearance: | 300 | Net weight: | 290 |
| Seat height: | 500 | Gross weight: | 350 |
| Tire size（Aluminium）: | 23*7-10/22*10-10 | Loading quantity(40hq): | 36 |
| Dimension: | 2500*1500*1470 | Package size: | 2300*1310*600 |
